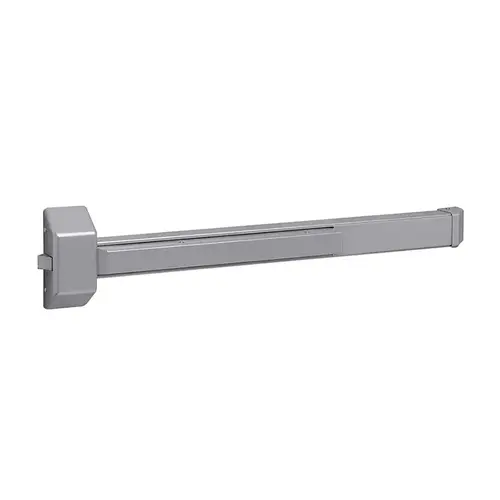

Sargent 3828F EN 3828 Rim Exit Device, Aluminum Painted
Item #: 3828F EN by Sargent
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Outside Trim: 28 series lever and rose trims, GTB Pulls and plates, OB knob and trims and Thumb Piece trims
- Mounting: Furnished standard with wood and machine screws; Available with through bolts and mortise nuts
- Cover: steel
- Chassis: Nonferrous alloy
- Rail Assembly: Roll formed steel
- End Cap: Steel
- Hand: Non-handed
- Latchbolt: Stainless steel 3/4" (19mm) throw
- Strike: 649 packed standard
- Dogging Feature: Allen-type key furnished standard (non fire rated devices only)
Function
Exit Only
Finish
Aluminum Painted
Design
Rim Device
Series
3828 Pushpad
Strike
649 Strike
Color
Aluminum Painted
Color Code
689/US28
Device Length
36 Inch (3 Foot)
Fire Rated
No
Device Type
Rim Device
Includes Trim
No
Package Qty
1
Physical Appearance
Wide Stile Pushpad
Handing
Non-Handed
Stile
Wide Stile
Finish Description
Aluminum Painted
Product Type
Exit Device
Length
3
Type
F Friction Hold Open Type
Warranty
1 Year From Date of Purchase.
Aluminium Bottle Contents
Swinging
ProductType
Manual
For Door Thickness
1-3/4 Inch
Device Trim ANSI Function
01
Rail Material
Roll Formed Steel
Manufacturer Parent
Assa Abloy
Stile Width
4-1/2 Inch
Device Rating
Panic Exit Device
Latch Type
Stainless Steel
Sub-Series
EDT_Rim_Devices_sargent_4
Trim Style
EO
ADA Compliant
No
Chassis Material
Non-Ferrous Alloy
Application
Single and Double Door
Function Family
Exit Only Device
Standards
ANSI/BHMA A156.3 - Grade 1; UL Listed
Features
Chassis Mounted Unit Construction; Tapered Push Rail and Angled Covers; Steel Endcaps; Through-Bolts and Mortise Nuts
Bolt Throw
3/4 Inch
Dogging Options
Hex Key Dogging
Chassis Cover Material
Steel
Finish Family
Aluminum
Product Overview
3828 SeriesRim Type Exit Device
The 3828 Series supports both single and double door applications and is ideal for warehouses and stairwell fire exits.
Benefits:- Steel endcaps and covers provided added durability
- Meets ANSI A156.3 Grade 1
- UL Listed
- 1-3/4" (44) thick standard. 4-1/2" (114mm) minimum stile width required for single or double door application using standard 649 strike
- 28 Series Lever & Rose trims, GTB/HTB Pulls & Plates OB Knob trims
- Furnished standard with wood and machine screws Available with through bolts and mortise nuts
- Steel
- Nonferrous alloy
- Roll formed steel
- Steel
- Non handed
- Stainless steel 3/4" (19mm) throw
- 649 packed standard
- Allen-type key furnished standard (non fire rated devices only)
- EB, ED, EN, EP, EAB
- Maximum Door Opening
- 4'0" X 8'0" (1219mm X 2438mm)
- Maximum Door Opening
- 8'0" X 8'0" (2438mm X 2438mm)
- (A) 3 Hour, (B) 1 1/2
- (B) 1 1/2, (D) 1/2 Hour, (E) 3/4 Hour
- Note: Please contact door manufacturer for specifications regarding fire door construction
- * Limited for fire doors listed by UL for this use. NFPA requires an astragal on 3 hour applications. Vertical rod application will not work with astragal.
