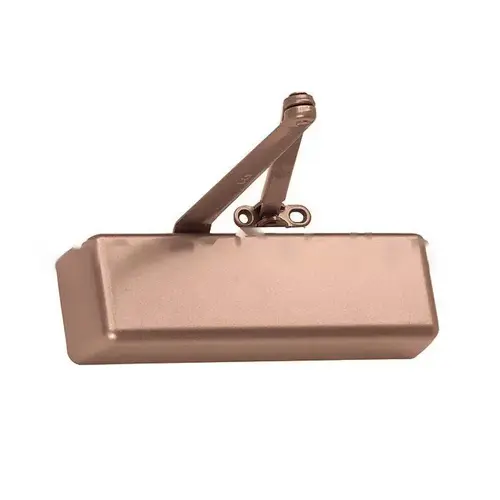

4010 Series Surface Mounted Door Closer, Dark Bronze Painted

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

LCN 4011HSTATRH 4010 Series Surface Mounted Door Closer, Dark Bronze Painted

Item #: 4011HSTATRH by LCN

See reviewsSee reviews

$1,193.48

/each
SAVE UP TO 119.35

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Forged Steel Main Arm
  • Double Heat Treated Steel Pinion
  • All Weather Fluid
  • UL and cUL Listed
  • Peel and Stick Templates

Series

4010 Series

Function

H-Hold Open Arm

Finish

Dark Bronze Painted

Handing

RH

Finish Description

Dark Bronze Painted

Grade

ANSI/BHMA Grade 1

Spring Size

Adjustable 1-5

Mount

Hinge (Pull Side)

Product Type

Door Closer/Holder/Stop

Product Height

3-1/2 Inch

Product Length

12-1/4 Inch

Product Width

2-1/4 Inch

ADA Compliant

YES

Finish Family

Dark Bronze

Included Components

Patented Green Dial Spring Force Indicator

Closer Arm Construction

Forged

Product Material

Cast Iron

Closer Cover

Full Plastic Cover

Standards

Grade 1 - ANSI A156.4, UL 10C, 100 Hour Salt Spray, Meets BAA - Buy American Act

Closer Arm Extension

11-1/2 Inch

Closer Arm Type

Hold Open Arm

Closer Fluid Temperature Range

-30°F to 120°F

Closer Fluid

All Weather Fluid

Closer Piston Diameter

1-1/2 Inch

Closer Pinion Diameter

11/16 Inch

Function Family

Hold Open Door Closer

Mounting Hole Size

2-1/2" x 6"

Templating

Peel-n-Stick

Fastener Type

Self Reaming and Tapping Screws

Features

Full Complement Bearing; Double Heat-Treated Steel Pinion Journal

Mounting Type

Hinge (Pull Side)

Application

High Traffic Applications

Hand

Right Hand

Warranty

30 year

Door Thickness

1-3/4 inch

Door Size

4' 6" (Interior); 3' 6" (Exterior)

Maximum Door Opening

140°

Manufacturer Parent

Allegion

Closer Hold-Open

true

Sub-Series

DC_Surface Mounted Closers_lcn_53

Product Overview
4010 SeriesHeavy Duty Closer

The 4010 is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

Specifications: Certifications:
  • Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Body Construction:
  • Cast Iron Body
  • Full Complement Bearing
  • 1-1/2" Diameter Piston
  • 11/16" Diameter Double Heat Treated Pinion Journal
Fluid:
  • All Weather Fluid
Handing:
  • Handed
Templating:
  • Peel-n-Stick templates - 2-1/2" x 6" Mounting Hole Pattern
Size:
  • Adjustable 1-5 or Sized 6
Warranty:
  • 30 years
Cover:
  • Plastic, Standard
  • Metal, Optional
Fasteners:
  • Self Reaming and Tapping Screws (SRT)
Mounting:
  • Hinge (Pull Side)
Arms:
  • Regular Arm
Finishes/Colors/Powder Coat:
  • Aluminum (689)
  • Statuary Bronze (690)
  • Light Bronze (691)
  • Black (693)
  • Dark Bronze (695)
  • Brass (696)
  • Custom colors optional
  • Optional SRI primer - powder coat only
  • Optional plated finishes
