Pressure Switch, 3-Phase, 10 A, 115/575 V, DPST, Screw Clamp Terminal, NEMA 1 Enclosure

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

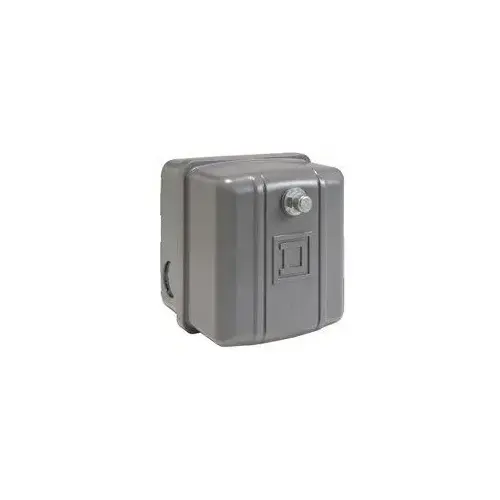

Square D 9013GSG2J20 Pressure Switch, 3-Phase, 10 A, 115/575 V, DPST, Screw Clamp Terminal, NEMA 1 Enclosure

Item #: 9013GSG2J20 by SQUARE D

UPC #: 785901559887

See reviewsSee reviews
See reviews summary
In Stock

$116.35

/each
SAVE UP TO 11.63

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 27 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Phases

3

Contact Form

DPST

Temperature Rating

-22 to 257 deg F

Enclosure Type

NEMA 1

Nomenclature

9013GSG2J20 SWITCH 20-40PSI

Operating Cycles

100000

Port Type

Single

Diaphragm Material

Nitrile

Electrical Connection Type

Screw Clamp Terminal

Current Rating

10 A

Connection Type

1/4 in NPS Female

For Use With

Square D Pumptrol

NEMA Rating

1

Terminal Type

L1-T1

Standards Met

CE

UNSPSC Code

39122210

Vendor Drop Ship

N

Maximum Differential Pressure (psig)

30psi

Pressure Switch Type

Electromechanical

Maximum Pressure Setting

40psi

Differential Pressure Type

Adjustable

Minimum Pressure Setting

20psi

Minimum Differential Pressure

15psi

Product Overview
PRESSURE SWITCH PUMP 20-40PSI

Water pump and air compressor pressure switch with 20 to 40 psi cut-in/cut-out settings. Designed to control higher water pumps and air compressors requiring higher electrical ratings. 2-Pole, NEMA 1 enclosure, 1/4 in NPSF internal pressure connection, diaphragm actuated, UL/CSA Listed, RoHS compliant, NSF61-Annex G certified. Individually boxed.
