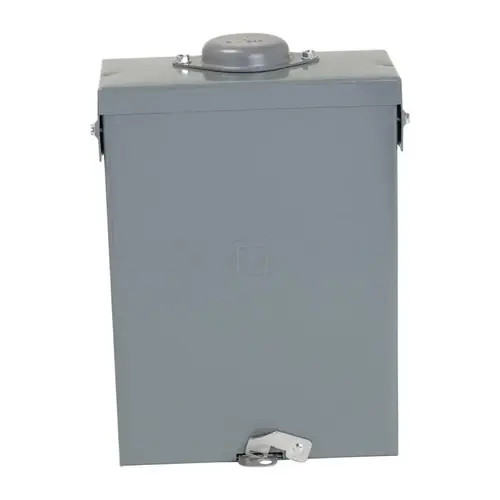

Homeline Load Center, 100 A, 6 -Space, 12 -Circuit, Main Lug, NEMA 3R Enclosure, Gray

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Square D HOM612L100RBCP Homeline Load Center, 100 A, 6 -Space, 12 -Circuit, Main Lug, NEMA 3R Enclosure, Gray

Item #: HOM612L100RBCP by SQUARE D

UPC #: 047569071256

See reviewsSee reviews
See reviews summary
In Stock

$67.87

/each
SAVE UP TO 6.79

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 666 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Includes a rainproof outdoor cover
  • Accommodates plug-on secondary surge arrestor
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • Three ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
  • Single phase

Warranty

Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.

Pack Size

1

Returnable

Yes

UL Listed

Yes

Height

4.70

Defective Code

A

Breakers Included

No

Number of Spaces

6

Maximum Number of Circuits

12 circuits

Width

10.20

Circuit Protection Type

Main Lug

Sub Brand

HomeLine

Mounting Type

Plug

Indoor or Outdoor

Outdoor

Volts

120/240 V

Packaging Type

Boxed

Product Type

Main Lug Load Center

AMPS

100 amps

Each Weight

10.060 LB

Velocity

C

Hazardous Material

No

UNSPSC

39121101

Alternative UPC

785901071259

Length

14.50

ECCN

EAR99

Country Origin Code

MX

Cable Size

8 to 1 AWG

Interrupt Rating

10 kA

Wiring Configuration

3-wire

Cover/Lid Type

Surface

Enclosure Type

NEMA 3R

Breaker/Load Center Type

Main Lug

Nomenclature

HOM612L100RBCP 100A LOAD CENTR

Bus Bar Material

Aluminum

Color

Gray

Number of Circuits

12

Number of Phases

1

Finish

Baked Enamel

Current Rating

100 A

Depth

4.27"

Voltage

120/240

Wire Size

(8) #1 AWG (Copper, Aluminum)

Amperage

100

Phase

Single

Certification

UL Listed

Series

Homeline

Mount Type

RB

Max Number of Circuits

12

Product Overview
LOADCNTR MAIN LUG HOM OUT 100A

Outdoor main lug load center, 100 A, 6 space and 12 circuits. Can be wired for underground or overhead feeds with a 2-1/2 in hub on the top and a 1-1/2 in knockout on the bottom. NEMA type 3R enclosure resists rain for durable performance. ANSI certified and UL listed.
