QO Circuit Breaker, AFCI, 20 A, 1 -Pole, 120/240 V, Fixed Trip, Plug Mounting

Roll over image to zoom in

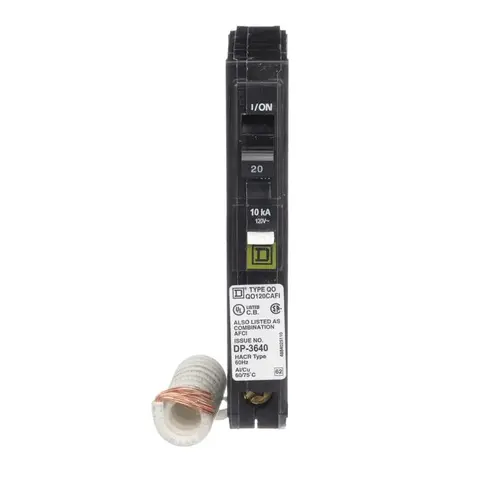

Square D QO120CAFIC QO Circuit Breaker, AFCI, 20 A, 1 -Pole, 120/240 V, Fixed Trip, Plug Mounting

Item #: QO120CAFIC by SQUARE D

UPC #: 785901698180

See reviewsSee reviews
See reviews summary
In Stock

$113.18

/each
SAVE UP TO 11.32

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 343 units available
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • QO 20 Amp single-pole Combination AFCI circuit breaker
  • 120-Volt AC
  • Compatible with QO load centers, CSED's and NQOD panel boards
  • 10,000 AIR
  • Limited Lifetime Warranty
  • Plug-on design, easy to install
  • Wire terminals UL listed for 2 branch wires (10A-30A, single- and double-pole)

Warranty

Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the QO load center in which it is installed.

Pack Size

1

Height

5.50

AMPS

20 Amps

Mounting Type

Plug

Volts

120/240 V

Depth

2.92"

Width

4.00

UL Listed

Yes

Number of Poles

1

Number of Spaces

1

Packaging Type

Sleeve

Indoor or Outdoor

Indoor

Circuit Protection Type

Arc Fault/Plug In

CSA Listed

No

Defective Code

A

Each Weight

1.300 LB

Hazardous Material

No

Returnable

Yes

Sub Brand

QO

Velocity

D

Product Type

Circuit Breaker

UNSPSC

39121601

ECCN

EAR99

Country Origin Code

CN

Length

1.50

Dimensions

2-29/32 in L x 3/4 in W x 4-3/4 in H

Application

For QO load centers, NQ and NQOD panelboards/interiors and speed-D switchboard distribution panels

Type

AFCI

Wire Size

12 to 8 14 to 8 AWG

Number of Phases

1

Terminal Type

Pressure Contact

Interrupt Rating

10 kA

Trip Type

Fixed

Nomenclature

QO120CAFIC 20A COMBO AF BREAKR

Current Rating

20 A

Voltage

120

Frame Size

1-Space

Amperage

20

Width (in)

1

Certification

UL Listed

Mount Type

Plug-In

Interruption Type

CAFCI

Product Overview
CIRC BRKR ARC FAULT COMBO 20A
Specifications:

Application: For QO load centers, NQ and NQOD panelboards/interiors and speed-D switchboard distribution panels

Dimensions: 2-29/32 in L x 3/4 in W x 4-3/4 in H

Combination CAFCI 3/4 in single-pole circuit breaker, designed for overload and over-current protection of an electrical system. Thermal-magnetic tripping mechanism. Designed to detect arcs that are caused by damaged, aged or improperly used wires or cords and to disconnect the power. Visi-Trip indicator to identify which circuit is out in the load center. With Time-Saver Diagnostics, advanced trip indication technology, identifying the type of fault that last occurred. 10kA interrupting rating. Uses one space per breaker. 120 VAC. UL listed. Carded.
