30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Grade
ANSI/BHMA Grade 2
Thickness
1-3/8" - 1-3/4"
Application
Standard Duty Commercial Interior and Exterior Applications in Public Buildings; Medical Offices; Hotels/Motels; Government Facilities
Hand
Not Handed
Color
Dark Oxidized Satin Bronze Oil Rubbed
Color Code
613/US10B
Case Length
20.75"
Keyway
Sargent LA
Function
G04-Storeroom/Closet
Keying
Keyed Different
Cylinder Type
Conventional Cylinder
Fire Rated
No
Origin
USA
BAA Qualified
Yes
Package Height
4.25"
Package Length
8.25"
Package Volume
249.8203125
Package Width
7.125"
ANSI Function
F86
Bolt Protection
1/2"
Case Height
9"
Case Volume
2801.25
Case Width
15"
Dust Box
None
Key(s)
Cut
Latch Backset Dim
2-3/4"
Latch Number
07-2430
Latch Type
Deadlocking/Guarded
Lever/Knob Design
L - Lever
Lock Face Size
2-1/4" x 1-1/8"
Package Qty
1
Rose/Escutcheon Design
L - Rose
Screws
Combination
Special Marks
Conventional cylinder
Strike Height
4-7/8"
Strike Number
808 ANSI Strike
Strike Type
ANSI Curved Lip
Strike Width
1-1/4"
Finish
Oil Rubbed Dark Bronze
Finish Description
Oil Rubbed Dark Bronze
Keyblank Grouping
SRGT-LA-6-1
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Lever Style
L-Lever
Product Type
Cylindrical Lock
Rose/Escutcheon Trim
L-Rose
Backset
2-3/4 Inch
Series
7 Line
Projection
2.5000
Lever Length
5.0000
Door Thickness
1-3/4 inch
Bore Size
2.1250
ADA Approved
False
Keying Charges
CCAM
Warranty
5 year limited
Handle Type
Lever
Rose Diameter
3-3/8 Inch
Door Cross Bore
2.125 Inch
Standards
ANSI/BHMA A156.2 (2017) Series 4000 Grade 1; UL and cUL Listed; ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies
Cylinder Type Used
Conventional
Function Description
Outside knob/lever always locked/rigid. Latchbolt retracted by key in outside knob/lever or by rotating inside knob/lever. Inside knob/lever always free. Deadlocking latchbolt.
Front Size
2-1/4" x 1-1/8"
Cylinder Material
Brass
Strike Size
4-7/8" x 1-1/4"
Sub-Series
CL_Cylindrical_Locks_sargent_204
Lever Style Family
Straight Return Lever
Latch Bolt Material
Brass
Knob/Lever Size
5 Inch
Latch Corner
Square
Lever Length-Inches
5 Inch
Manufacturer Parent
Assa Abloy
Finish Family
Dark Bronze
ADA Compliant
YES
Latch Throw
1/2 Inch
Features
Solid Feel and Precise Lever Action; Levers are Solid, One-Piece Cast Construction; Deadlocking Latch; Latch by Lever Inside or Key Outside; Outside Lever Rigid At All Times
Trim Material
Solid Cast (Lever); Heavy Wrought (Rose)
Product Projection
2-1/2 Inch
Strike Lip
1-1/4 Inch
Function Family
Storeroom
Handing
Reversible
Design
L Lever and L Rose

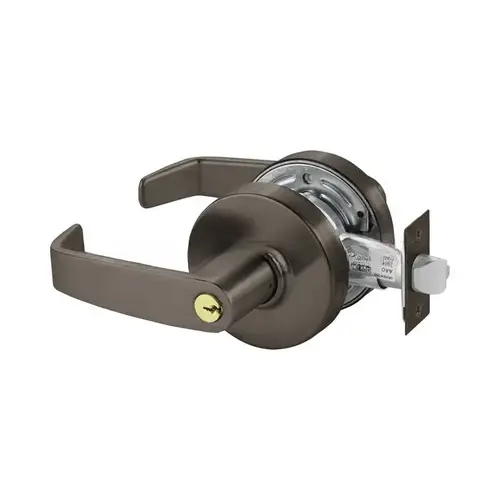

As the best overall lock in the Grade 2 class, the 7 Line® key-in-lever lock exceeds ANSI/BHMA A156.2 standards for cycling and durability. The 7 Line is designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities.
Features:
