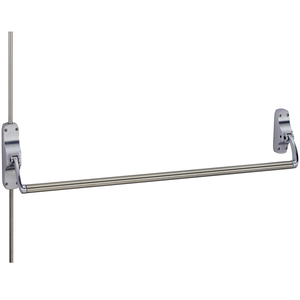

Von Duprin 8827EO US4Click To Copy Surface Vertical Rod Push Bar Exit Device, Satin Brass Finish
Item #: 8827EO US4 by Von Duprin
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Surface Vertical Rod Latching
- Device functions Field reversible Device ships EO, DT, TP, K, L, TL
- Crossbar length 42" (1067 mm) field sizable
- ANSI A156.3, Grade 1
- Device is Field Reversible
- Device centerline 3913/16"
- All Necessary Mounting Fasteners are Included.
- Crossbar centerline to finished floor 36 13/16" (935 mm) at center
- 3/4" Throw
- Lock stile case 8 1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm) Lock case 4 5/8" x 5 3/4" x 1 1/16" (117 mm x 146 mm x 27 mm)
- Faceplate 1 1/4" x 8" x 7 /32" (32 mm x 203 mm x 6 mm)
- Cylinder backset 2 3/4" (70 mm)
- Hinge stile case 6" x 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
- Crossbar tubing 1" (25 mm) outside diameter
- Projection Neutral – 4 7/8" (124 mm) Depressed – 4" (102 mm)
- Latchbolt 5 /8" (16mm) throw
- Fasteners and sex bolts (SBN) Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) thick metal or wood doors. Sex nuts and bolts included
Finish
Satin Brass
Function
Exit Only
Strike
299, 304L Strikes
Series
88 Series
Grade
Grade 1
Color Code
606/US4
Fire Rated
No
Device Type
Surface Vertical Rod
Includes Trim
No
Package Qty
1
Physical Appearance
Wide Stile Crossbar
Base Material
Brass
Product Overview
Surface Vertical Rod Exit Device, Exit Only, No Trim, Satin Brass
8827 surface mounted vertical rod devices for all types of single and double doors, UL listed for accident hazard installations. Covers stock hollow metal doors with 86 cutout and fits door stiles as narrow as 2 1/2 In. (90 mm). This device is field sizable.
8827 surface mounted vertical rod devices for all types of single and double doors.
UL listed for accident hazard installations. Covers stock hollow metal doors with 86 cutout and fits door stiles as narrow as 2 1/2" (90 mm). This device is field sizable.
