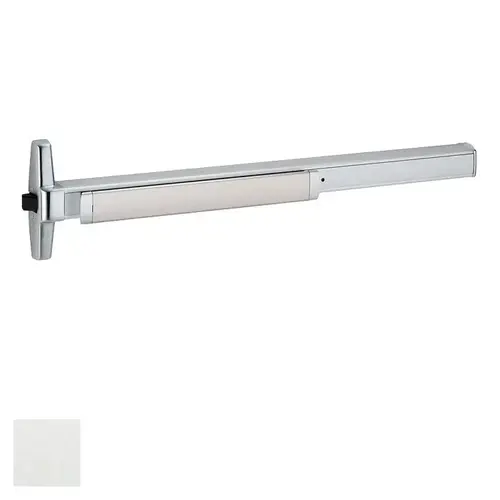

Von Duprin 35A-EO-3FT-28 35A Series Rim Exit Device, Satin Aluminum Clear

Item #: 35A-EO-3FT-28 by Von Duprin

See reviewsSee reviews
See reviews summary

$2,930.20

/each
SAVE UP TO 293.02

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

Satin Aluminum Clear

Length

3

Handing

Non-Handed

Function

Exit Only

Device Length

36 Inch (3 Foot)

Stile

Narrow Stile

Fire Rated

No

Finish Description

Satin Aluminum

Device Type

Rim Device

Dogging Options

Hex Key Dogging

Trim Options

EO Exit Only

Product Type

Exit Device

Series

35A Pushbar

Application

Single Doors and Double Doors; Schools, Hospitals and Government Facilities

Bolt Throw

3/4 Inch

Standards

ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 305; CAN/ULC S132

Stile Width

2 Inch

Trim Style

EO

Center Case Dimensions

8-3/16 Inch x 1-9/16 Inch x 2-13/32 Inch

Device Bar Projection

Push Bar Neutral: 3-13/16 Inch; Push Bar Depressed: 3-1/16 Inch

Device Rating

Panic Exit Hardware

Device Trim Function

Exit Only (No Outside Trim)

Function Description

Exit Only - No Trim

Device Centerline From Finished Floor

39-13/16 Inch; 39-11/16 Inch with Mullion

Function Family

Exit Only-No Trim

Device Trim ANSI Function

01

Mechanism Case Dimensions

2-1/4" x 2-1/4"

Features

Grooved Mechanism; Push Pad; Narrow Stile; Modular Design

Latch Type

Deadlocking

Strike Number

1439

Strike Type

Roller

ADA Compliant

No

Finish Family

Aluminum

ANSI Function

01

Manufacturer Parent

Allegion

Sub-Series

EDT_Rim_Devices_von_duprin_83

Product Overview
35A SeriesRim device

35A for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2014 Grade 1. The 35A has a smooth mechanism case. The rim device is non-handed except when the SS (signal switch) option is used. See opposite page for available outside trim and device functions.

35A fits door stiles as narrow as 1 3/4” (44mm). Newly designed device has a one piece center case cover.

Specifications: Finishes:
  • US3, US4, US10, US15 (35A Only) US26, US26D, US26D-AM,US28, 313 and 315.
Device lengths:
  • 3' - 2' 4" to 3' (711mm to 914 mm) Door size
  • 4' - 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline from finished floor:
  • 39 13/16" (1011 mm)
  • 39 11/16" (1008 mm) with Mullion
Center case dimensions:
  • 8 3/16" x 1 9/16" x 2 13/32"
  • (208mm x 40mm x 62mm)
Mechanism case dimensions:
  • 2 1/4" x 2 1/4"
  • (57mm x 57mm)
Projection:
  • Pushbar Neutral – 3 13/16" (97 mm)
  • Pushbar Depressed – 3 1/16" (78 mm)
Latch bolt:
  • Deadlocking, 3/4" (19mm) throw
Fasteners & sex bolts (SNB):
  • Includes 13/4" (44mm) – 2 1/4" (57mm) wood & metal doors
  • #425 SNB furnished standard for end case
  • #325 SNB furnished standard for EO (exit only device)
Electric options:
  • ALK - Alarm kit
  • CX - Chexit delayed exit
  • EL - Electric latch retraction
  • HD-EL - Electric latch retraction with hex dogging
  • QEL - Quiet electric latch retraction
  • RX - Request to exit, WP-RX waterproof option
  • LX - Latchbolt monitoring
  • LX-RX - Request to exit / latchbolt monitoring
  • RX-LC, LX-LC, LX-RX-LC
  • Low current option for RX, LX, LX-RX
  • SS - Signal switch
  • CON - Allegion Connect
Mechanical options:
  • AX - Accessible device
Miscellaneous options:
  • GBK - Glass bead kit
  • PN - Pneumatic
  • SG - Safety glow
  • SEC - Security screws
  • SNB - Sex bolts
Dogging feature:
  • Hex - Dogging standard
  • CD - Cylinder dogging
  • LD - Less dogging
Strikes:
  • 1439 – Dull black
  • Optional strikes
