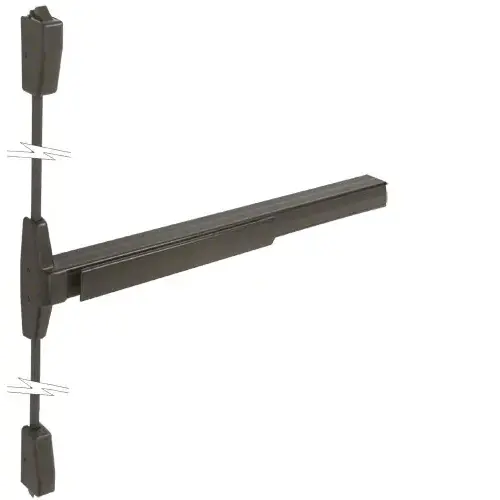

Von Duprin 3327AE03313 Surface Mounted Vertical Rod Panic Exit Device with Grooved Case Dark Bronze Finish 36" x 84" Exit Only
Item #: 3327AE03313 by Von Duprin
Item Discontinued!30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Features Grooved Case Surface
- Fits Stiles as Narrow as 1-3/4" (44 mm)
- Non-Handed
- UL Listed and Tested to ANSI A156.3, Grade 1
Size
36" (914 mm)
Brand
Von Duprin
Finish
Dark Bronze
Door Height
84
Certification
ANSI/BHMA 156.3 Grade 1
Finish/Color
Dark Bronze
Panic Bar Width Net
35 3/8
Push Pad Width
18
Recommended Door Type
Aluminum,Narrow,Medium,Wide Style,Wood,Hollow Metal
Minimum Stile Width (Inches)
1-3/4
Panic Head Base Width
2-11/16
Panic Bar Base Height (Inches)
2-1/4
Panic Type
Surface Vertical Rods
Replacement Parts
DC7205SCKDDU,DC7015SC8KDDU,Special Order
Panic Head Height (Inches)
8-3/16
Panic Bar Projection (Inches)
3-13/16
Panic Body Style
Grooved
Panic Dogging
Standard Hex Key Dogging
Material
Aluminum
Handing
Non Handed
Model
3327AEO
Door Thickness
1-3/4
Door Width
36
UL Listed
Yes
Includes
Mounting Hardware
The IR Von Duprin® 3327A Series Surface Mounted Vertical Rod Panic Exit Device is designed for use with single and double doors. It has a grooved case and is intended to fit door stiles as narrow as 1-3/4" (44 mm). This device features the "quiet One"® technology which eliminates most noise associated with Exit Devices and is manufactured to the highest standard of quality. All 33A and 35A Series Exit Devices are UL Listed for Panic Exit Hardware, and are tested in accordance to ANSI A156.3, Grade 1 standards. For additional information, contact our Technical Sales Department.
.
