The IR Von Duprin 3327A Series Surface Mounted Vertical Rod Panic Exit Device is designed for use with single and double doors. It has a grooved case and is intended to fit door stiles as narrow as 1-3/4" (44 mm). This device features the "quiet One" technology which eliminates most noise associated with Exit Devices and is manufactured to the highest standard of quality. All 33A and 35A Series Exit Devices are UL Listed for Panic Exit Hardware, and are tested in accordance to ANSI A156.3, Grade 1 standards. For additional information, contact our Technical Sales Department.
REPLACEMENT PARTS:DL2170SCKDDU DL2170Y8KDDU Special Order
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

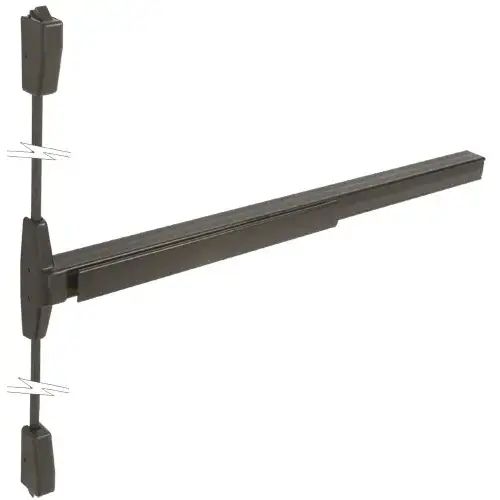

Von Duprin 3327AE04313 Surface Mounted Vertical Rod Panic Exit Device with Grooved Case Dark Bronze Finish 48" x 84" Exit Only
Item #: 3327AE04313 by Von Duprin
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Non-Handed
- Fits Stiles as Narrow as 1-3/4" (44 mm)
- Features Grooved Case Surface
- UL Listed and Tested to ANSI A156.3, Grade 1
Size
48" (1.22 m)
Brand
Von Duprin
Finish
Dark Bronze
Door Height
84
Certification
ANSI/BHMA 156.3 Grade 1
Finish/Color
Dark Bronze
Series
3327A
Panic Bar Width Net
47 3/8
Push Pad Width
24
Recommended Door Type
Aluminum,Narrow,Medium,Wide Style,Wood,Hollow Metal
Minimum Stile Width (Inches)
1-3/4
Panic Head Base Width
2-11/16
Panic Bar Base Height (Inches)
2-1/4
Panic Type
Surface Vertical Rods
Replacement Parts
DC7205SCKDDU,DC7015SC8KDDU,Special Order
Panic Head Height (Inches)
8-3/16
Panic Bar Projection (Inches)
3-13/16
Panic Body Style
Grooved
Panic Dogging
Standard Hex Key Dogging
Material
Aluminum
Feet per Roll
500
Handing
Non Handed
Model
3327AEO
Door Thickness
1-3/4
Door Width
48
UL Listed
Yes
Includes
Mounting Hardware
Minimum Stile Width
1-3/4 in. (44.5 mm)
Panic Bar Base Height
2-1/4 in. (57.2 mm)
Panic Head Height
8-3/16 in. (208 mm)
Panic Bar Projection
3-13/16 in. (96.8 mm)
Product Overview
The IR Von Duprin 3327A Series Surface Mounted Vertical Rod Panic Exit Device is designed for use with single and double doors. It has a grooved case and is intended to fit door stiles as narrow as 1-3/4" (44 mm). This device features the "quiet One" technology which eliminates most noise associated with Exit Devices and is manufactured to the highest standard of quality. All 33A and 35A Series Exit Devices are UL Listed for Panic Exit Hardware, and are tested in accordance to ANSI A156.3, Grade 1 standards. For additional information, contact our Technical Sales Department.
