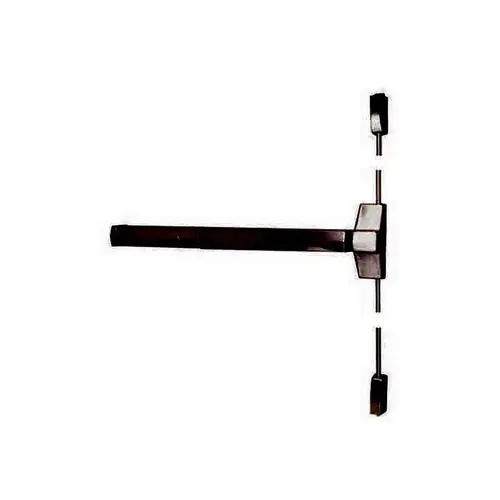

Yale Commercial 7110-48-613E-LHRClick To Copy 7110 Surface Vertical Rod Series Exit Device, Dark Oxidized Satin Bronze

7110 SeriesSurface Vertical Rod

The 7110 is a surface vertical rod exit device to be used on wide stile or flush doors up to 8' (fire) and 10' (panic) where two-point latching is desired.

Features:

• Designed for wide stile and flush doors

• Handed. Specify hand (field reversible)

• Bottom deadbolt for secure latching

• Fully adjustable roller strike

Applications:

• Pairs of doors

• Double egress

• Metal, wood or composite door materials

Specifications: Door Opening Width:

• 24 for 24" (60cm) doors
• 36 for 30" - 36" (76cm - 91cm) doors
• 48 for 36" - 48" (91cm - 122cm) doors

Door Opening Height:

• Standard door height 7' (213cm), with the device centerline at 39-15/16" (101cm) from floor

Door Thickness:

• 1-3/4" (44mm) standard. Optional door thicknesses available to 4-1/2"; specify door thickness when ordering

Minimum Stile Width:

• 4-1/2" (114mm)

Projection:

• 3-1/4" (83mm) active, 2-3/4" (70mm) dogged

Latchbolt:

• Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching
• Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing

Vertical Rods:

• 1/2" O.D. tubular brass, bronze or stainless steel with rod guides

Strike:

• Top: Roller type 791
• Bottom: Flush mounted 790

Fasteners:

• Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.

Trims:

• 620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim.

ANSI/BHMA:

• Certified A156.3 Type 2, Grade 1

UL/cUL:

• FVSR/FVSR7 - Panic hardware

Dogging:

• Hex key dogging supplied standard on panic devices

Warranty:

• 5-year limited

Finishes: 605:

• Bright Brass, Clear Coated

606:

• Satin Brass, Blackened, Satin Relieved, Clear Coated

611:

• Bright Bronze, Clear Coated

612:

• Satin Bronze, Clear Coated

613E:

• Dark Oxidized Satin Bronze - equivalent

616:

• Blackened, and Satin Relieved, Clear Coated

619:

• Satin Nickel Plated, Clear Coated

620:

• Satin Nickel Plated, Blackened, Satin Relieved, Clear Coated

629:

• Bright Stainless Steel

630*:

• Satin Stainless Steel

693:

• Black Painted

BSP:

• Black Suede Powder Coat

WSP:

• White Suede Powder Coat

• 613, 626 and 722 finishes available as Special Product Requests only. Please contact Customer Service for more information

• *Finish available with MicroShield® antimicrobial coating, additional finishes by special application. Consult factory for availability.

• MicroShield coating may vary finish color from architectural standards. MicroShield is not intended as a substitute for traditional infection control programs such as hand hygiene or use of disinfectants. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. Yale makes no representations or warranties, express or implied, as to the efficacy of MicroShield.
