Slide Door Roller Replacement: Selection Guide

One of the several wardrobe door accessories, a roller opens the closet/wardrobe door easily and conveniently. If you're looking for slide door roller replacements CRL's got you covered. CRL's wardrobe door hardware catalog is categorized into four groups:

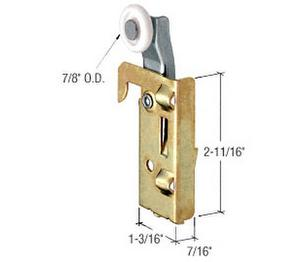

  • Top hung hardware

top hung slide door roller replacement



  • Rollers and Top Guides for Bottom Supported Doors

rollers and top guides for slide door roller replacement



  • Pivot door hardware

pivot door hardware for slide door roller replacement



  • Bottom Door Track

bottom door track for slide door roller replacement

Bottom roller brackets and pocket door rollers

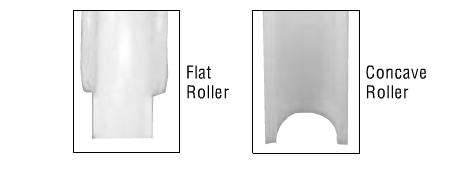

There are two types of bottom roller brackets – flat and concave. This is the first thing to check when selecting a replacement roller bracket. CRL manufactures bottom roller brackets for both wood and metal frame doors.

CRL also carries hardware for pocket doors. If you require replacement hardware for space-saving sliding pocket doors, there are a number of options to choose from.

Types of wardrobe rollers

With hanger bracket included: Designed for use on Johnson Door Hardware Systems, the hanger bracket has a threaded bolt to adjust the height.

Stamped steel top hung roller bracket with round edge nylon rollers, designed for use with Stanley/Acme track systems.

Round edge nylon roller, with stamped steel top hung or adjustable steel roller bracket, designed for use on Cox systems. Tandem door roller that fits on 3/4'' to 1-3/8'' thick Harvey track systems.

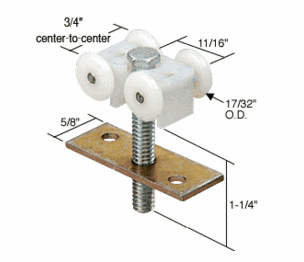

Nylon carrier with four nylon rollers and adjustable steel threaded stud with steel mounting plate, used on top suspended accordion doors and shutters.

1-1/2'' diameter nylon ball bearing roller with adjustable aluminum housing bracket fits on Monarch Door Company 500 Series aluminum frame doors. The N6599's housing bracket is 1/2'' wide, and has a round extruded boss. Another option is the N6963 flat nylon mirror wardrobe door roller for Contractors Mirror Doors. It has an adjustable 3'' wide steel housing and the roller has a 1-1/2'' diameter.

Four round edge nylon rollers with a stamped steel bracket, designed for bypassing and pocket doors.

Three flat edge nylon rollers with stamped steel bracket 3/4'' diameter rollers, used for bypassing and pocket doors, and which fit L.E. Johnson track systems.

Flat edge nylon roller with stamped steel top hung bracket, designed to fit Likit track systems

Four 1-1/8'' diameter round edge nylon ball bearing rollers with heavy-duty die cast brackets, consists of a threaded bolt for adjustment and top mounting bracket with screws. They are designed to be used on top suspended pocket doors.

CRL maintains a vast range of wardrobe door and drawer hardware for different door brands. Get more information on the catalog here.
